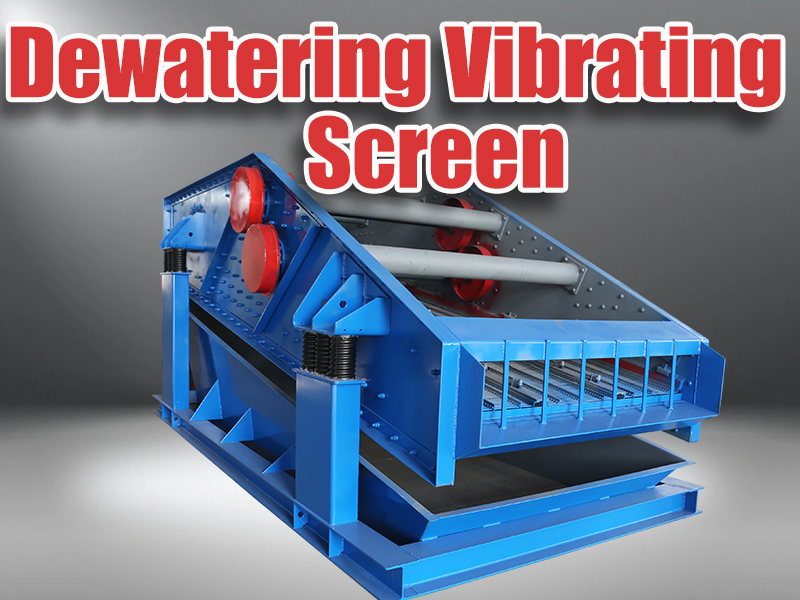

The Dewatering Vibrating Screen is an advanced screening solution designed to recover coal slurry, dewater fine particles, and classify materials efficiently. With its high-frequency vibration and strong vibration intensity, this screening equipment ensures large processing capacity, excellent dewatering performance, and strong adaptability to different material types. It is widely used in industries such as coal processing, sand washing, mineral tailings treatment, and slurry dewatering.
This dewatering vibrating screen is engineered to optimize material flow, maximize water removal, and enhance screening efficiency through a unique mechanical design and vibration pattern. Its customized elliptical-circular-elliptical motion trajectory improves the separation process, ensuring faster material stratification, better fine particle screening, and improved dewatering effects.
Innovative Motion Characteristics for Superior Dewatering
One of the key advantages of the dewatering vibrating screen is its optimized vibration motion, which significantly enhances material separation and water removal efficiency. The design places the vibrator above the center of gravity of the screen box, resulting in a unique elliptical-circular-elliptical motion pattern:
- At the feeding end, the motion is elliptical, with the long axis of the ellipse forming an acute angle with the screen surface.
- At the middle section, the motion transitions into a circular trajectory, improving material stratification.
- At the discharge end, the motion returns to elliptical, but the long axis of the ellipse forms an obtuse angle with the screen surface.
This motion pattern plays a crucial role in optimizing the dewatering process:
- Faster Material Stratification at the Feeding End – The acute angle at the feeding section increases the material movement speed, ensuring that the material loosens quickly, creating a thinner material layer. This allows fine particles to efficiently reach the screen surface, promoting rapid separation and water drainage.
- Efficient Dewatering at the Discharge End – The obtuse angle at the discharge section reduces material speed, extending the retention time of particles on the screen surface. This extended duration enhances water removal, ensuring that the final material is significantly drier before discharge.
- Breaking of Water Film for Maximum Water Removal – The combination of high-frequency vibration and trajectory changes effectively ruptures the surface water film, accelerating dewatering and improving efficiency.
Key Features and Advantages
1. High-Frequency Vibration for Maximum Efficiency
The Dewatering Vibrating Screen operates at a high frequency and strong vibration intensity, which helps to:
- Increase the separation speed of fine particles.
- Improve screening precision and dewatering effectiveness.
- Reduce moisture content in the final product.
2. Optimized Vibration Mechanism for Strong Adaptability
By placing the vibration exciter above the screen box center, the machine achieves an optimal balance of powerful vibration and controlled material movement, allowing for:
- Better adaptability to different materials, including fine-grain and high-moisture content materials.
- Stable and reliable operation even under high loads and continuous operation.
3. Enhanced Dewatering Effect Through Extended Material Contact Time
The motion trajectory is specifically designed to:
- Speed up material separation at the feeding end, allowing finer particles to penetrate the screen quickly.
- Slow down material movement at the discharge end, increasing the exposure time for water removal, thus improving dewatering efficiency.
4. Versatile Applications Across Multiple Industries
This dewatering vibrating screen is highly versatile and is widely used in:
- Sand Washing Plants – To dewater washed sand and improve sand quality.
- Coal Processing – For coal slurry recovery and moisture reduction in fine coal particles.
- Mineral Processing & Tailings Treatment – For dewatering tailings and fine mineral slurries in mining operations.
- Slurry Management – Effective for mud, wastewater, and slurry dewatering in various industrial applications.
5. Durable Construction and Low Maintenance
- The screen surface is made of high-strength wear-resistant materials, ensuring long service life.
- The simple yet robust design minimizes downtime and maintenance costs.
- The energy-efficient operation reduces power consumption while maximizing output.
Application Scenarios: Where the Dewatering Vibrating Screen Excels
- Washed Sand Dewatering – After sand is washed, excessive moisture remains in the material. The dewatering vibrating screen effectively removes water, reducing the final moisture content and ensuring better sand quality.
- Coal Slurry Recovery – Coal washing plants generate large amounts of coal slurry. This screening equipment separates water from fine coal particles, allowing for coal recovery and water reuse.
- Mine Tailings Dewatering – In mining operations, handling large volumes of slurry waste is a challenge. The dewatering screen helps remove excess water from mineral tailings, making them easier to process or dispose of.
- Slurry & Mud Treatment – For industries dealing with sludge or wastewater, this machine efficiently separates solids from liquids, reducing disposal costs and improving environmental compliance.
